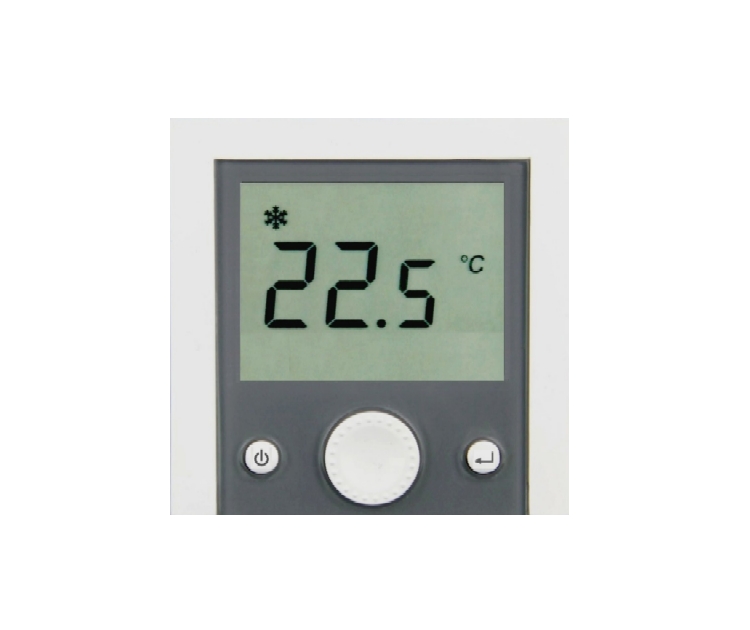

TS24 Touch-screen Series Standalone LCD Digital Temperature Controller is designed for temperature control in industrial, commercial and residential environments.  It  features microprocessor-based control and a large LCD display with backlight.  TS24 provides various models for different applications; 3-wire floating or 0-10 VDC control outputs which combines a proportional plus integral (PI) control algorithm for precise and stable control under varying system capacity and load conditions.

The UC24A Universal Controller is designed for Heating, Ventilating, Air-conditioning and Refrigeration in comfort control of industrial, commercial and residential environments.  It provides measurement and control of temperature, relative humidity, absolute humidity, enthalpy, pressure differential, volumetric airflow and indoor air quality. The input scale can be set from –99 to 999 units. The start and end points of output voltage can be any value between 0 to 10 VDC. UC24A standalone controller provides two direct or reverse 0...10 VDC outputs and one direct or reverse 2-position on-off output. 9 selectable control functions are provided for various applications.

􀀀 24 VAC supply voltage
􀀀 Modern Appearance
􀀀 Stylish rotary dial and touch key
􀀀 Large LCD with backlight
􀀀 Two 0...10 VDC outputs + one 2-position 24 VAC on-off output
􀀀 PI Algorithm
􀀀 Eco-mode DI for energy saving purpose
􀀀 Day / night DI for action changeover
􀀀 Retention of last settings upon power failure
􀀀 Configuration and Parameter setup menu
􀀀 Customizing availability
