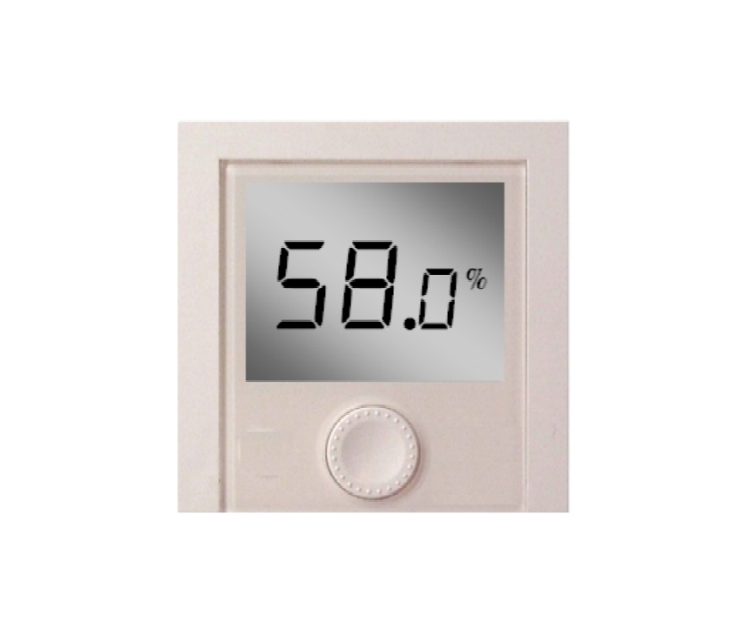

| SA-01 |
| Setpoint Adjuster |
SA-01 is an active LCD setpoint adjuster energized with 24 VAC supply that is designed for use with external controllers. It provides 0...10VDC signal directly proportional to the adjusted value of percentage. The LCD display and the rotary dial allow the users to view and adjust the output value in unit of percentage . It operates with a priority selector that compares the setpoint with either minimum and maximum limit signal.
Supply Voltage: 24 VAC +/- 15%, 50-60 Hz
Setpoint Range: 0-100%
Shipping Weight: 120 g |
|
|
|
|
|
|
| ET50 |
| LCD Room Thermostat |
Installation Manual
|
|
|
|
|
|
|

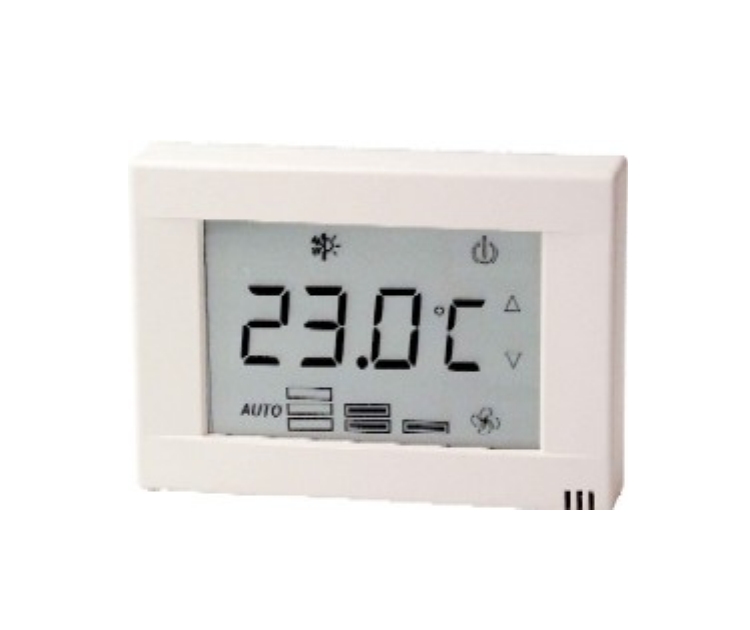

| NT900 |
| BACnet MS/TP Touch-screen LCD Networking Thermostat |
The NT900 Series networking touch-screen room thermostats are BACnet Master-Slave/Token-Passing (MS/TP) networked devices designed in strict accordance with ASHRAE standard 135-2001 and are considered “native” BACnet devices. These thermostats provide line voltage or 24-VAC on-off control or 3-wire floating or 0-10 VDC output to control valves in 2-pipe or 4-pipe fan coil units.
The technologically advanced NT900 Series thermostats feature a BACnet MS/TP communication capability that enables remote monitoring and programmability for efficient space or return air temperature control.
Supply Voltage: 220 VAC +/- 15%, 50/60 Hz
Setpoint Range: 5…35 oC
Shipping Weight: 550 g |
|
|
|
|
|
|
| ET40 |
| Touch-screen LCD Room Thermostat |
|
The ET40 Standalone Touch-screen LCD Fan Coil Thermostats are designed to control heating, cooling, or year round air conditioning units in commercial, industrial and residential Installation. Typical application includes the control of fan coil units, packaged terminal air conditioners and combination heating and cooling equipment. As part of the system that consists of two-way or three-way valve and a multi-speed line voltage fan. It is available with Horizontal and Vertical LCD .
Supply Voltage: 230 V, +10% and -15%, 50/60 Hz
Setpoint Range: 5…35 oC
Shipping Weight: 580 g |
|
|
|
|
|
|

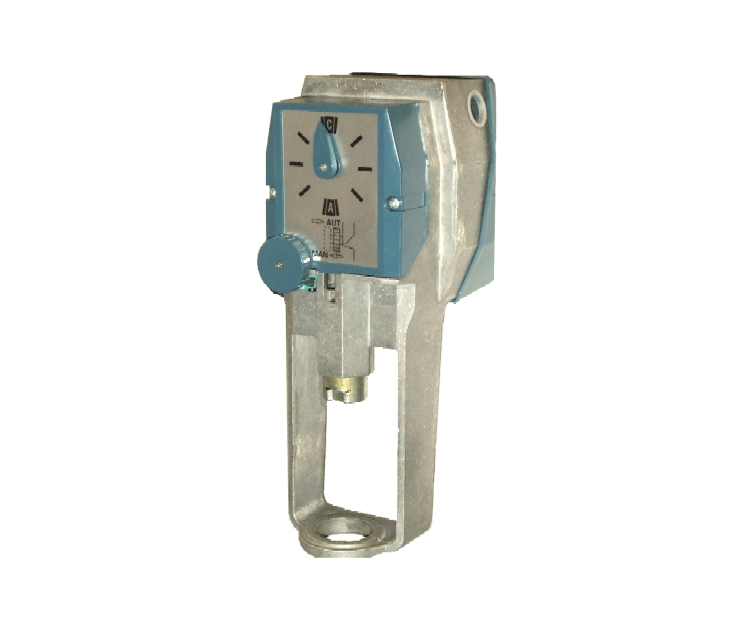

| SH |
| Valve actuator |
The SH Series valve actuators are designed for 3-wire floating / on-off, proportional voltage / current control for 2-way and 3-way globe valves from 15 to 100 mm. All units are equipped with a manual override device.
Voltage: 24 VAC (+15%, -10%), 50/60 Hz
Power Consumption: 9 VA
Stroke Time: 80 s (50 Hz) or 67 s (60 Hz)
Stroke: 45 mm
Force: 1200N (56 lbf)
Weight: 2.0 kg (4.4 lbs) |
|
|
|
|
